1.1 VECTOR runtime context ARC-001

Architecture design artifact

VECTOR operates as a Linux-based command-line toolchain that depends on a writable local workspace, external scanner binaries, and predictable output directories for generated artifacts.

Parent links: MRS-007 Run in a reproducible Linux-based environment

Child links: SWD-001 Entry points and directory initialization

Attribute	Value
release	Alpha

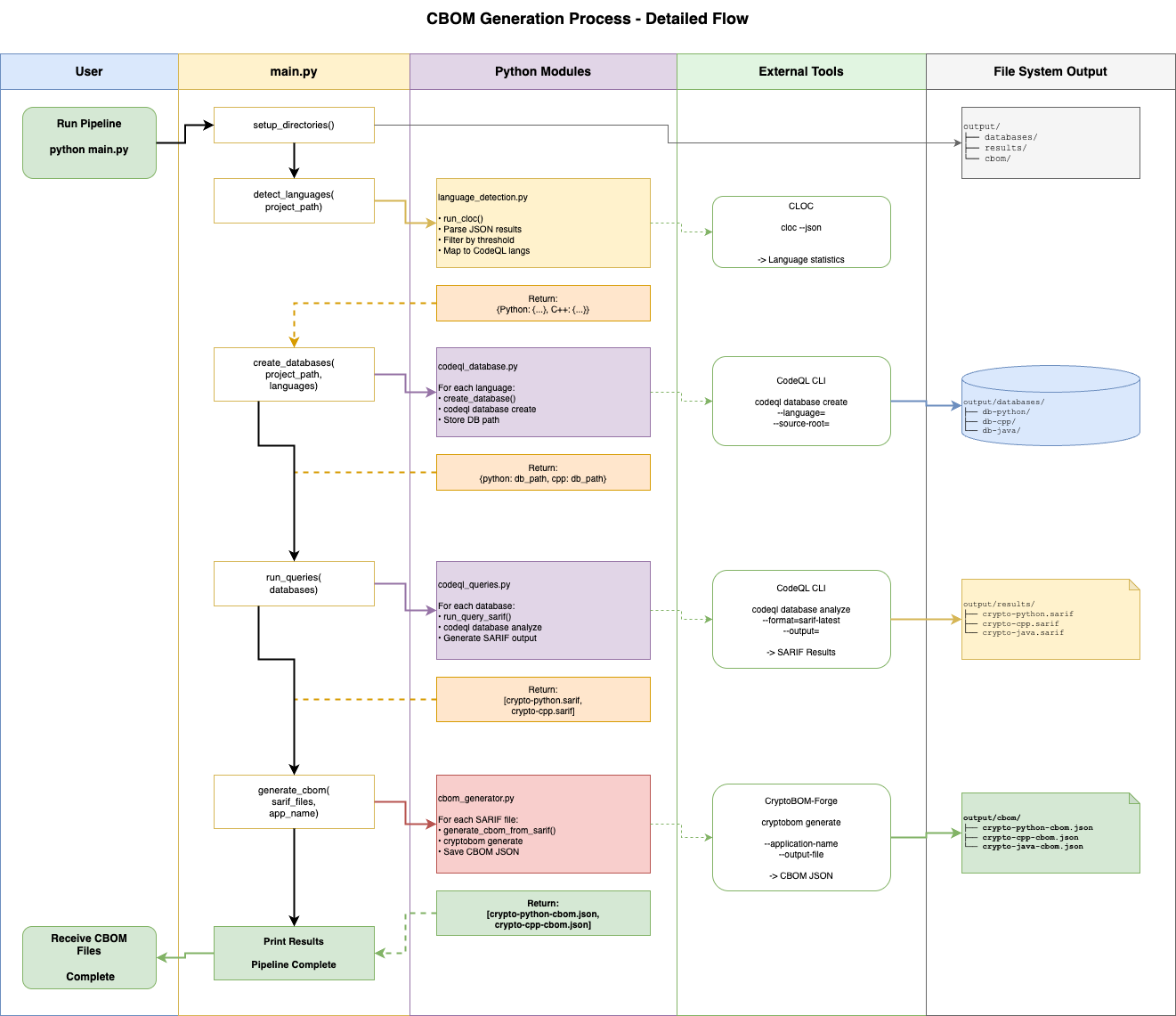

1.2 VECTOR-Code processing component ARC-002

Architecture design artifact

The VECTOR-Code component accepts a readable source-tree path, detects supported languages, creates CodeQL databases, runs inventory queries, and converts resulting findings into CBOM artifacts.

Processing pipeline

Parent links: MRS-004 Support source-code analysis for current target languages

Child links: SWD-002 Source inventory pipeline sequencing

Attribute	Value
release	Alpha

1.3 Unified inventory coverage boundary ARC-003

Architecture design artifact

VECTOR treats source-code analysis outputs and network-scan outputs as parallel inventory surfaces that are both transformed into persisted cryptographic inventory artifacts.

Parent links: MRS-001 Inventory cryptography across code and network surfaces

Child links: SWD-003 Inventory artifact segregation by analysis surface

Attribute	Value
release	Alpha

1.4 External analysis tool adapters ARC-004

Architecture design artifact

VECTOR delegates core analysis steps to external tools including cloc, CodeQL, cryptobom, testssl.sh, and zgrab2, and wraps them through thin orchestration scripts.

VECTOR-Network scanning workflow

Parent links: MRS-008 Orchestrate open-source analysis tooling

Child links: SWD-004 External command invocation contracts

Attribute	Value
release	Alpha

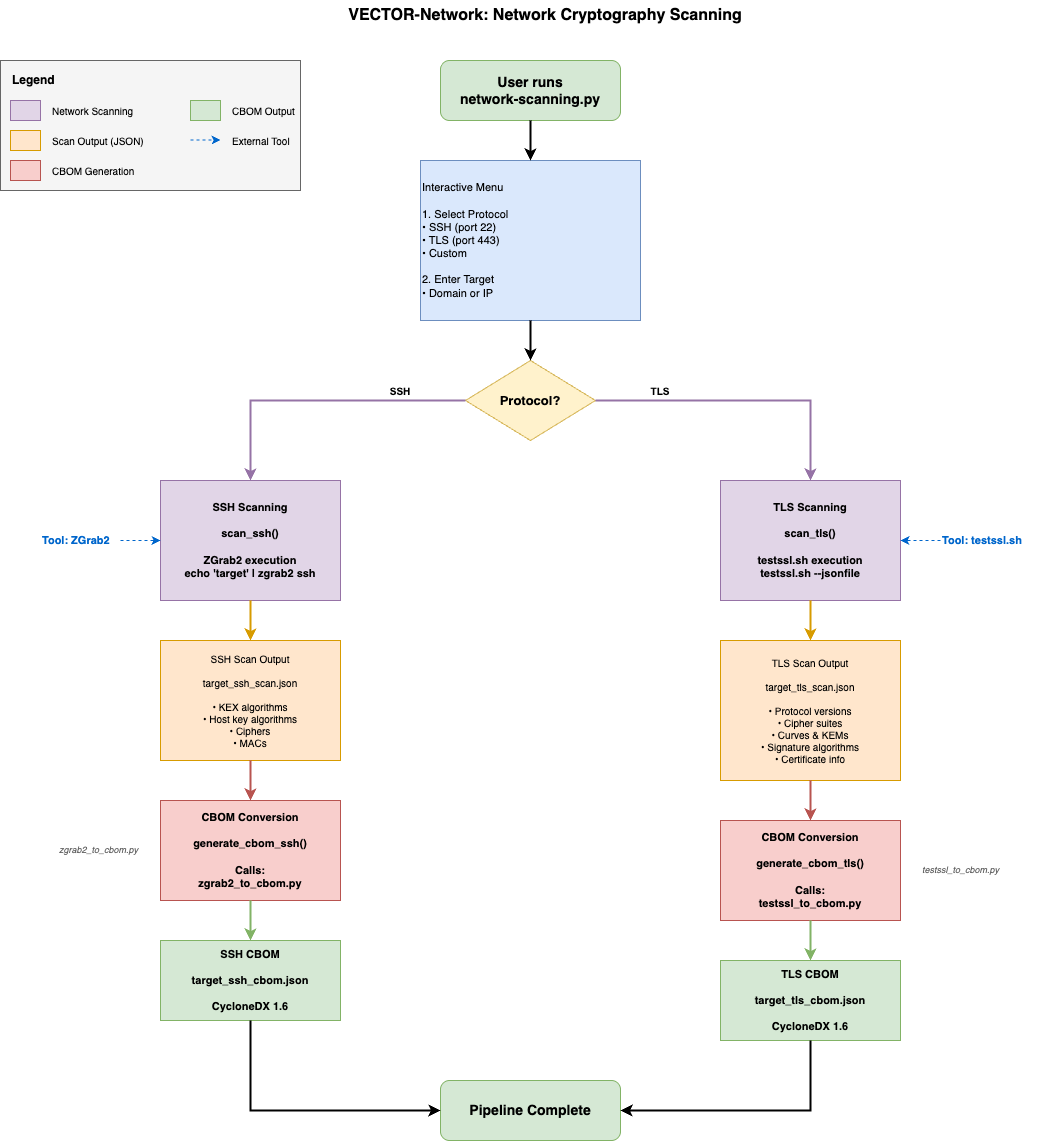

1.5 TLS assessment workflow ARC-005

Architecture design artifact

The TLS assessment workflow collects target-and-port input, invokes testssl.sh, stores a raw JSON result, and passes the result to the TLS-to-CBOM conversion path.

Parent links: MRS-005 Support TLS service assessment

Child links: SWD-005 TLS scan lifecycle and parser handoff

Attribute	Value
release	Alpha

1.6 SSH assessment workflow ARC-006

Architecture design artifact

The SSH assessment workflow collects target-and-port input, invokes zgrab2, stores a raw JSON result, and passes the result to the SSH-to-CBOM conversion path.

Parent links: MRS-006 Support SSH service assessment

Child links: SWD-006 SSH scan lifecycle and parser handoff

Attribute	Value
release	Alpha

1.7 CBOM generation and storage ARC-007

Architecture design artifact

CBOM generation is a distinct architecture concern that transforms intermediate findings into JSON inventory artifacts and stores them as reusable files in the local workspace.

Parent links: MRS-003 Produce standardized CBOM artifacts

Child links: SWD-007 CBOM generation routines

Attribute	Value
release	Alpha

1.8 Non-invasive network trust boundary ARC-008

Architecture design artifact

VECTOR's network workflows operate across a trust boundary from the local workstation to remote services and are constrained to observation-oriented scanner invocations and local artifact generation.

Parent links: MRS-009 Preserve non-invasive assessment behavior

Child links: SWD-008 Defensive validation and failure boundaries

Attribute	Value
release	Alpha

1.9 Algorithm modeling layer ARC-009

Architecture design artifact

VECTOR models cryptographic findings as explicit algorithm components so that classical, hybrid, and post-quantum-related elements can be represented consistently in generated CBOM outputs.

Parent links: MRS-002 Recognize post-quantum and hybrid algorithms

Child links: SWD-009 Algorithm decomposition and modeling

Attribute	Value
release	Alpha

1.10 Open artifact interfaces ARC-010

Architecture design artifact

VECTOR exposes its generated artifacts as local JSON files with stable naming conventions so they can be inspected and consumed by downstream tooling without proprietary dependencies.

Parent links: MRS-010 Produce open, reusable output artifacts

Child links: SWD-010 JSON interface and naming conventions

Attribute	Value
release	Alpha

1.11 VECTOR-Score: standalone quantum risk scoring module ARC-011

Architecture design artifact

VECTOR-Score is implemented as a standalone module under tor/VECTOR-Score/, positioned as a peer to VECTOR-Code and VECTOR-Network. It operates as a post-processing step on any CycloneDX CBOM JSON file, irrespective of the inventory tool that produced it.

Module boundaries

• Input: any CycloneDX CBOM JSON file (produced by VECTOR-Code, VECTOR-Network, or a conformant third-party tool).
• Output: an annotated CBOM JSON file and an optional Markdown risk report, written to configurable output paths.
• Dependencies: Python standard library only; no external packages required. Classification data is loaded from a co-located YAML catalog file at runtime.

Classification catalog

The risk classification rules are encoded in a YAML data file (data/algorithm-risk-catalog.yaml) rather than hardcoded in source. Each catalog entry specifies: algorithm name patterns (exact and/or regex), applicable primitive types, optional key-size bounds, risk classification, risk score, rationale, recommended migration target, and normative references. This design allows the catalog to be updated independently of the scoring logic as NIST, BSI TR-02102, and ANSSI guidance evolves.

Risk classification taxonomy

Classification	Meaning
quantum-vulnerable	Broken by Shor's algorithm on a CRQC (RSA, DH, ECDH, ECDSA, DSA)
quantum-weakened	Security believed to be reduced by Grover's algorithm (e.g., AES-128, 3DES, SHA-1), but this is not accurate as the algorithm is not embarrassingly parallel and partitioning the search space would degrade the Grover quadratic speedup. This is subject to ongoing research.
classically-deprecated	Already deprecated by classical attacks (RC4, DES, MD5, NULL ciphers)
quantum-safe	Sufficient security margin against both classical and quantum attacks (AES-256, SHA-256/384/512)
post-quantum	Standardised PQC algorithm (ML-KEM, ML-DSA, SLH-DSA)
hybrid	Classical + PQC combination key exchange (X25519MLKEM768, SecP256r1MLKEM768)
unknown	Algorithm not matched by any catalog entry

Integration approach

VECTOR-Score does not modify VECTOR-Code or VECTOR-Network. Users invoke it separately after obtaining a CBOM. Integration into pipelines is achieved by chaining command invocations.

Parent links: MRS-011 Assess quantum risk of discovered cryptographic assets

Child links: SWD-011 VECTOR-Score module decomposition and internal design

Attribute	Value
release	Alpha
