1.0 Class and package structure

This section presents class and package diagrams giving an overview of the C5-DEC CAD object model.

1.1 CCT class diagram SWD-001

Diagram

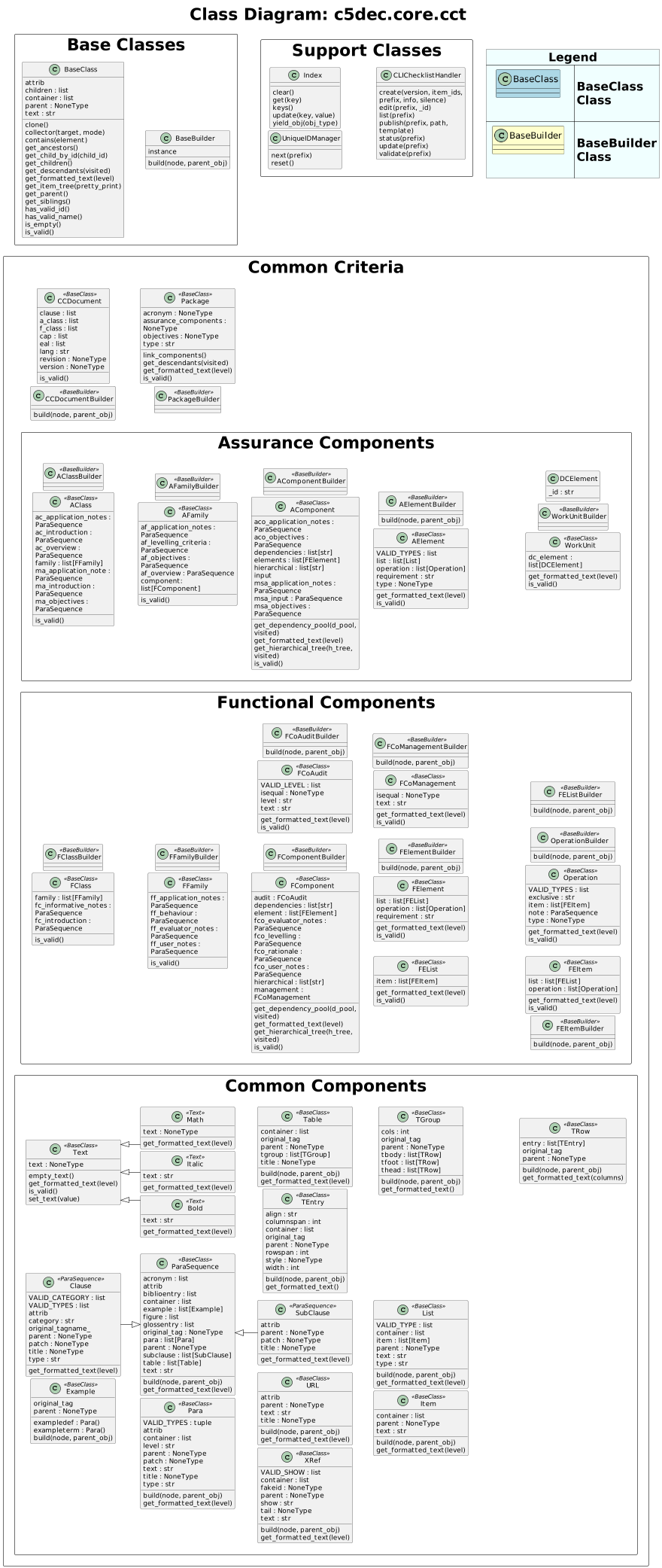

The diagram below shows the class diagram of the Common Criteria Toolbox (CCT) of C5-DEC CAD.

CAD context diagram

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

1.2 C5-DEC CAD classes SWD-002

Diagram

The diagram below shows the set of all classes comprising C5-DEC CAD, grouped by module and annotated with their inheritance and key composition relationships.

SWD-002 diagram 1

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

1.3 C5-DEC CAD packages SWD-003

Diagram

The diagram below shows the packages of C5-DEC CAD.

SWD-003 diagram 1

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

1.4 Centralized settings module SWD-018

Overview

C5-DEC CAD centralizes all configuration constants in a single module, c5dec/settings.py, imported project-wide under the canonical alias c5settings. The module resolves all file-system paths relative to PROJECT_ROOT_PATH and reads runtime parameters from c5dec_params.yml at import time.

UML Diagram

Design rationale

Concern	Approach
File-system paths	Resolved relative to `PROJECT_ROOT_PATH` at module load time; consistent across CLI, TUI, GUI, and container deployments
CC version selection	Read from `c5dec_params.yml` at import; overridable by CLI arguments at runtime
Feature flags	Dict controlling which modules are active (`ssdlc`, `cct`, `cryptography`, `cpssec`, `isms`, `pm`, `transformer`, `cra`, `sbom`)
Doorstop defaults	Centralized UID format, evaluation attributes, and publish attributes for all Doorstop operations
Logging	Graduated format/level constants supporting `-v` / `-vv` / `-vvv` verbosity

Usage convention

All modules import the settings module using the canonical alias:

import c5dec.settings as c5settings

Path constants are then referenced as c5settings.SPECS_FOLDER_PATH, c5settings.CRA_DATABASE_PATH, etc. No module hard-codes file paths.

Parent links: ARC-003 C5-DEC CAD subsystems architecture

2.0 CCT data model

This section describes the CCT data model, including Doorstop metadata and Markdown body representations.

2.1 C5-DEC CCT data model part 1 SWD-004

Diagram

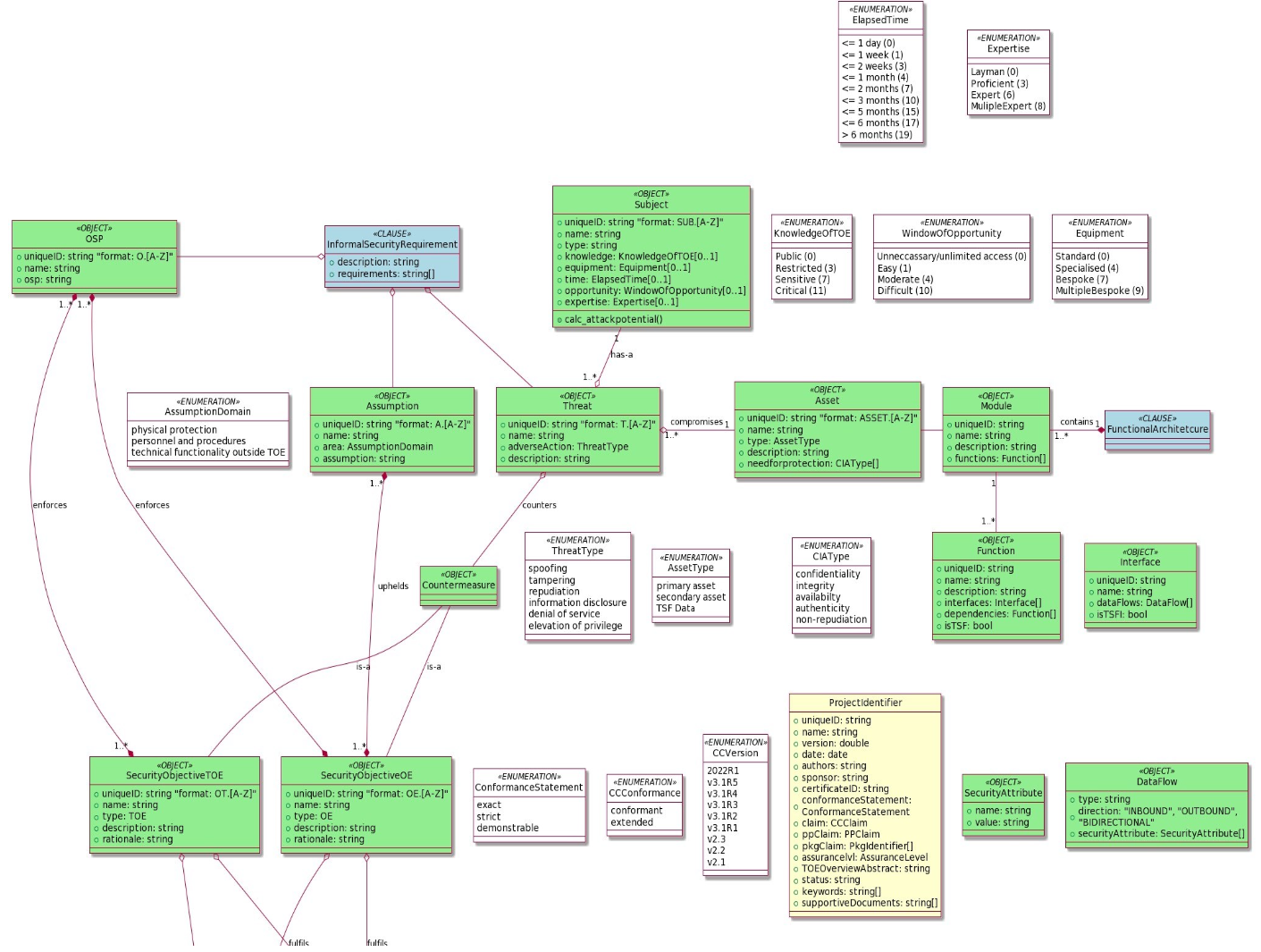

The diagram below shows part 1 of the overall C5-DEC CCT data model.

CCT data model part 1

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

2.2 C5-DEC CCT data model part 2 SWD-005

Diagram

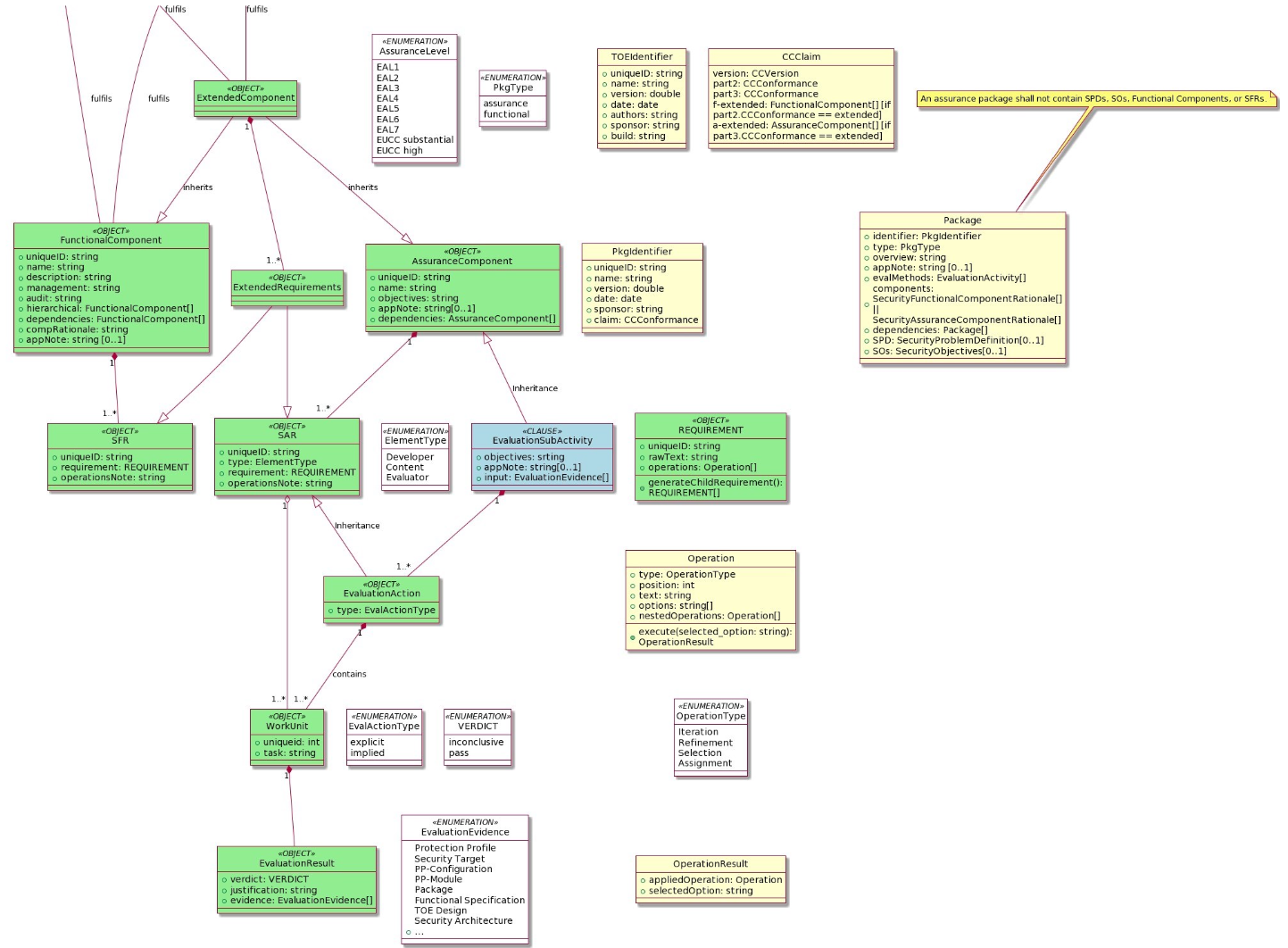

The diagram below shows part 2 of the overall C5-DEC CCT data model.

CCT data model part 1

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

2.3 C5-DEC CCT Doorstop metadata SWD-006

Diagram

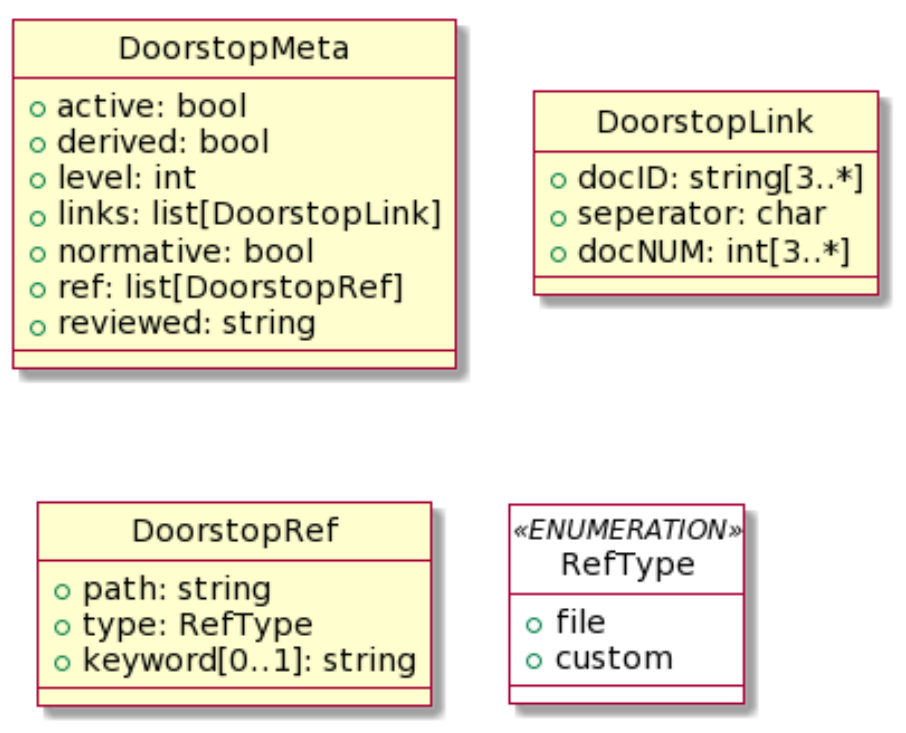

The diagram below shows the C5-DEC CCT Doorstop metadata model.

CCT Doorstop metadata model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

2.4 C5-DEC CCT Doorstop Markdown body SWD-007

Diagram

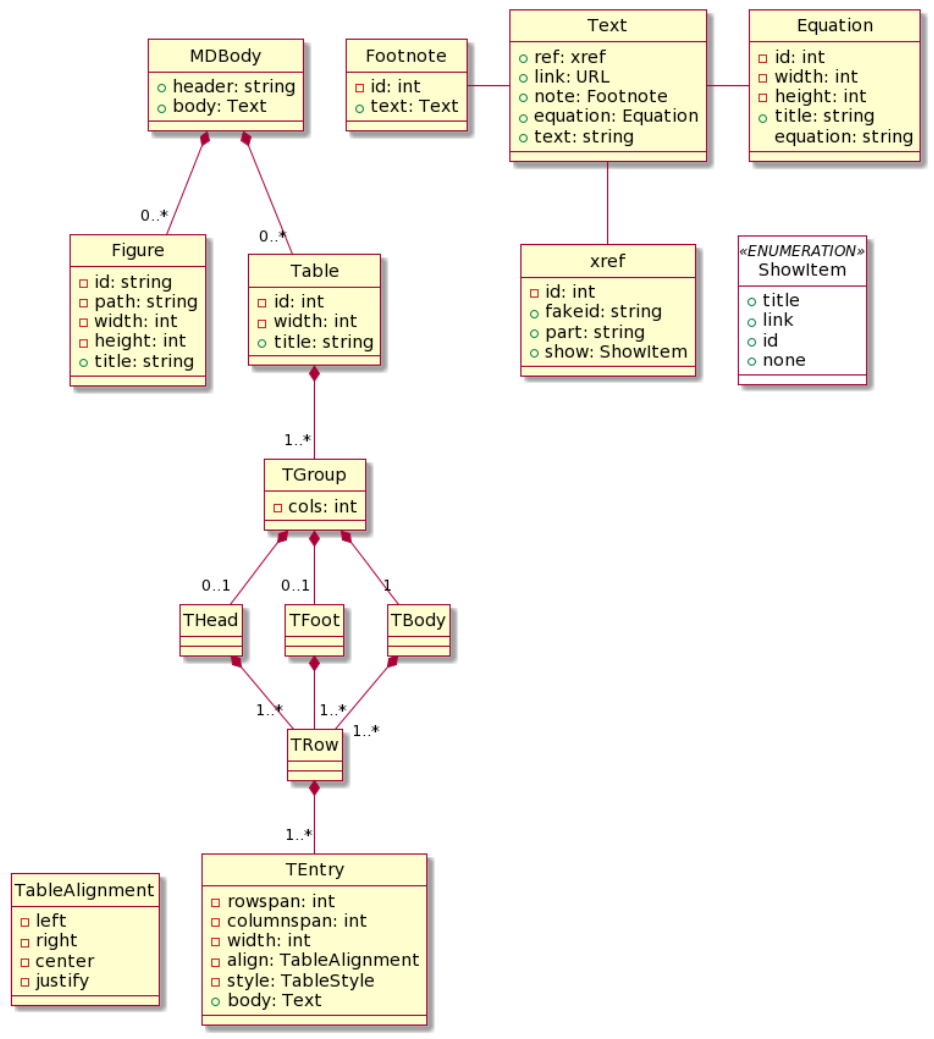

The diagram below shows the C5-DEC CCT Doorstop Markdown body data model.

CCT Doorstop Markdown body data model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

3.0 Security classes and evaluation

This section covers the design of CCT security functional and assurance classes, element operations, CEM evaluation activities, and their dependencies.

3.1 C5-DEC CCT security functional class SWD-008

Diagram

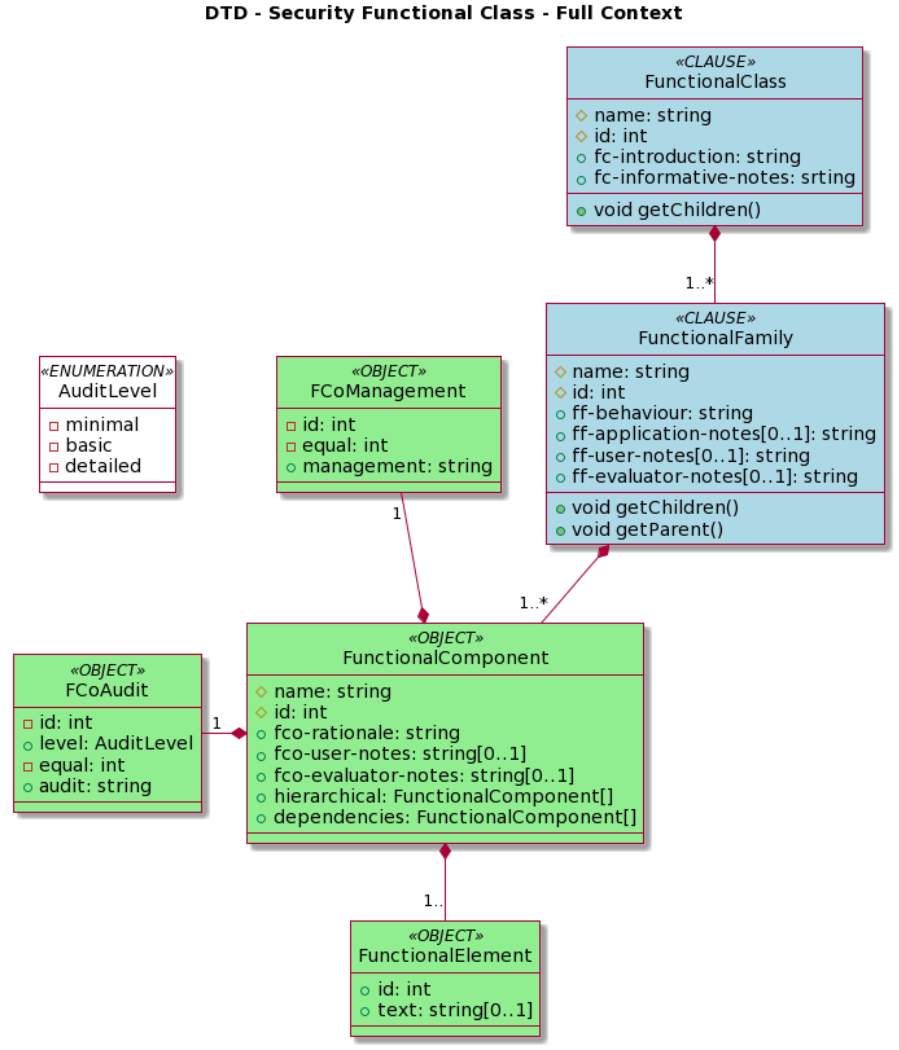

The diagram below shows the C5-DEC CCT security functional class data model.

CCT security functional class data model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

3.2 C5-DEC CCT security assurance class SWD-009

Diagram

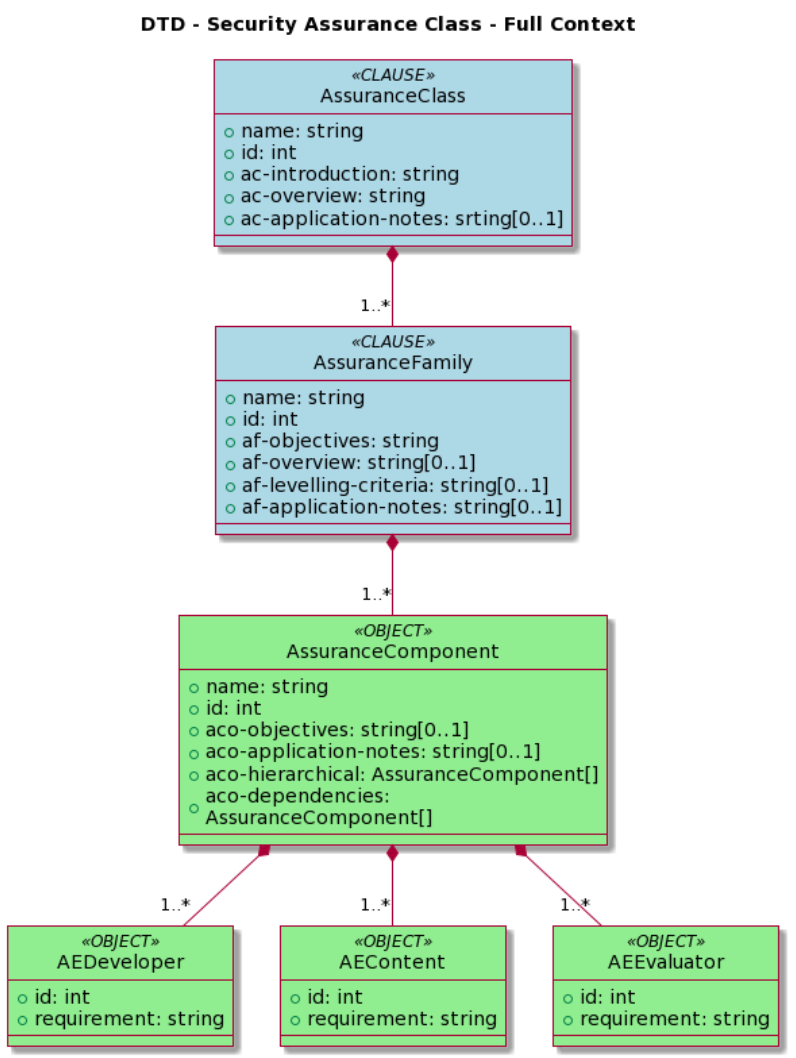

The diagram below shows the C5-DEC CCT security assurance class data model.

CCT security assurance class data model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

3.3 C5-DEC CCT element operations SWD-010

Diagram

The diagram below shows the C5-DEC CCT element operations data model.

CCT element operations data model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

3.4 C5-DEC CCT CEM evaluation activities SWD-011

Diagram

The diagram below shows the C5-DEC CCT CEM evaluation activities data model.

CCT CEM evaluation activities data model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

3.5 C5-DEC CCT sec. assurance and eval. act. dependencies SWD-012

Diagram

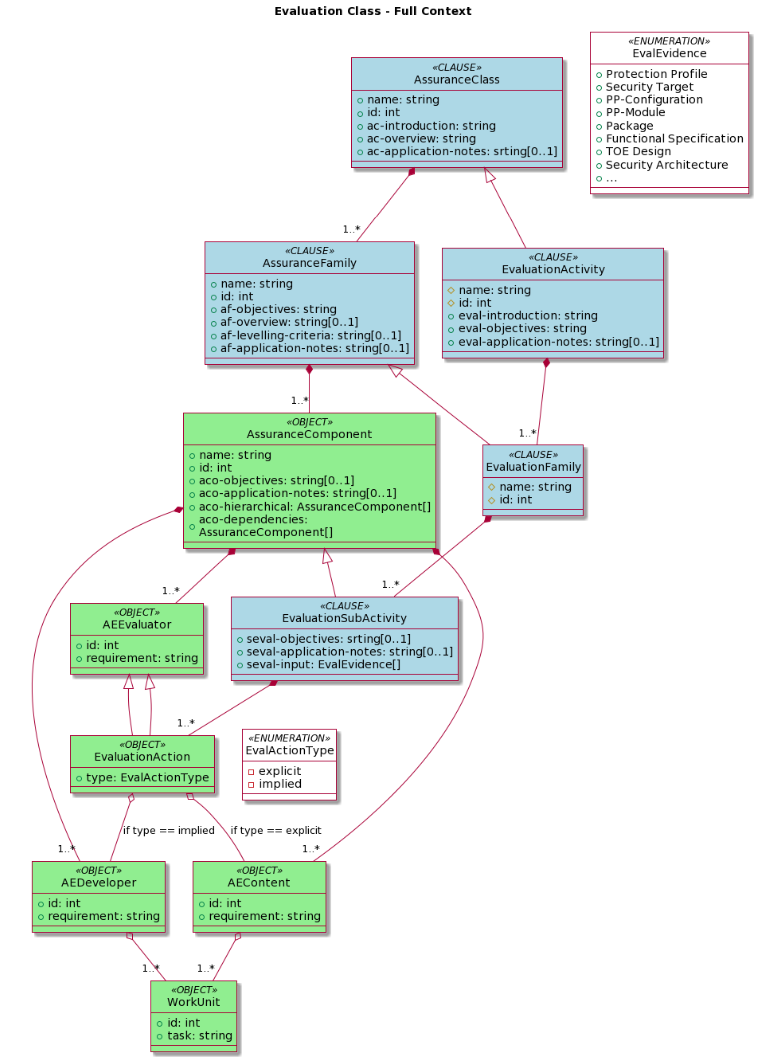

The diagram below shows the C5-DEC CCT security assurance evaluation and evaluation activities dependencies data model.

CCT CEM dependencies data model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

4.0 Document models

This section presents the generic Doorstop document model and the security target data model.

4.1 C5-DEC CCT generic Doorstop document SWD-013

Diagram

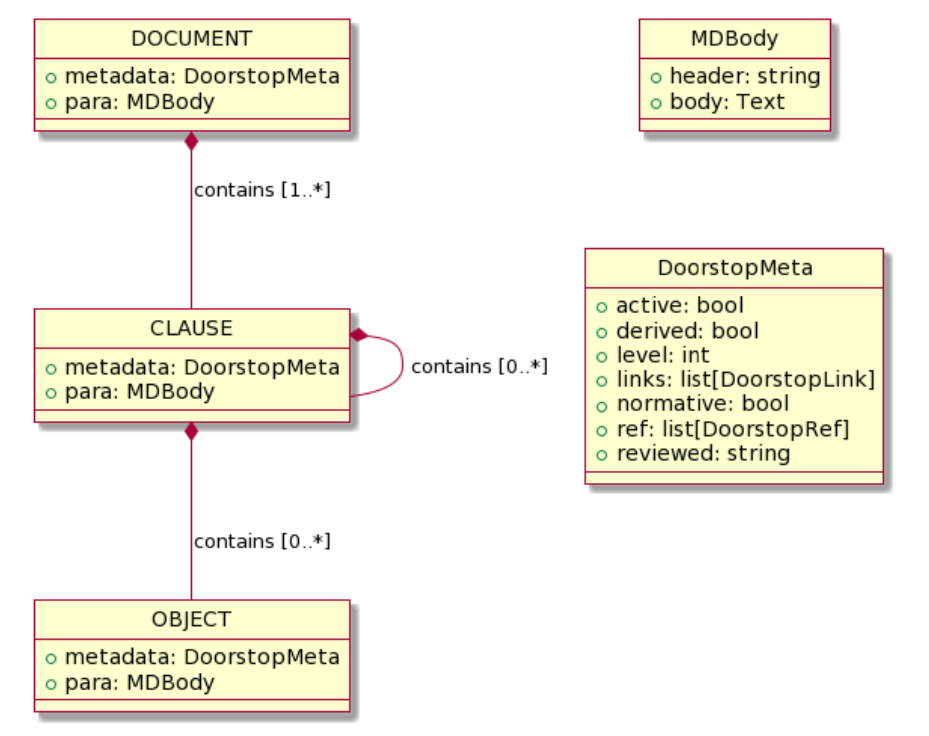

The diagram below shows the C5-DEC CCT generic Doorstop document model.

CCT generic Doorstop document data model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

4.2 C5-DEC CCT security target data model SWD-014

Diagram

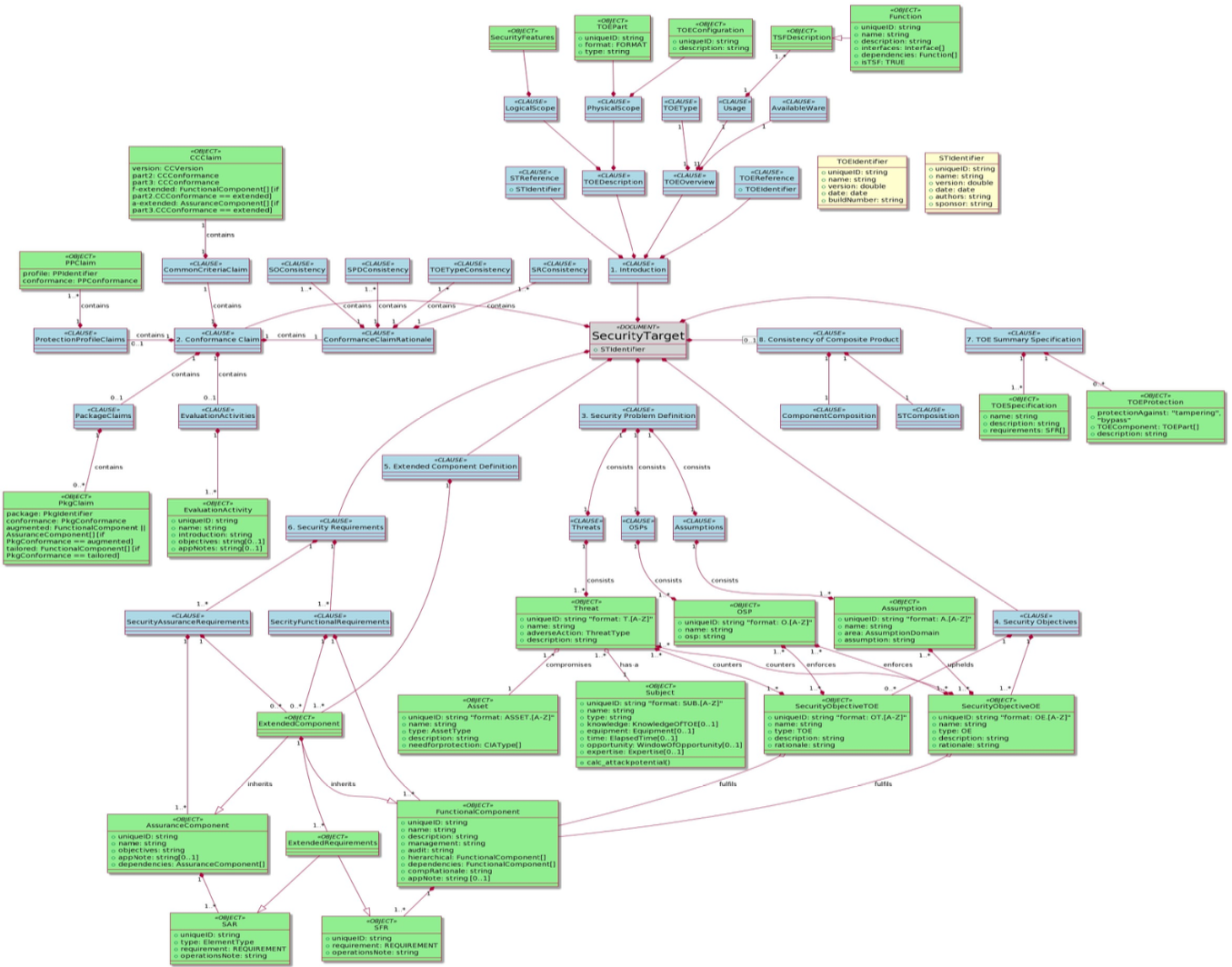

The diagram below shows the C5-DEC CCT security target data model.

CCT security target data model

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

5.0 CRA and SBOM compliance modules

This section presents the design of the c5dec.core.cra and c5dec.core.sbom modules introduced in C5-DEC CAD v1.2 to support EU Cyber Resilience Act compliance workflows.

5.1 CRA module class diagram SWD-015

Overview

The c5dec.core.cra module implements the Cyber Resilience Act (EU Regulation 2024/2847) compliance workflow. It provides an object model for CRA requirements organized by category and section, a loader for the local CRA database, and a checklist builder that exports an Excel compliance worksheet.

The module also provides helper functions for linking an SBOM to CRA requirements, enabling automated pre-verification of SBOM-traceable obligations.

Diagram

UML Diagram

Key design decisions

CRADatabase.load() reads structured YAML/JSON files from c5dec/assets/database/CRA/ and deserializes them into the class hierarchy.
CRAChecklistBuilder delegates SBOM linkage verification to the module-level helper functions verify_sbom_exists, link_sbom_to_cra_requirement, and auto_verify_sbom_requirement.
The module relies on c5dec.core.transformer for any format conversion during import.
All path constants are resolved via c5dec.settings (CRA_DB_PATH, CRA_LOG_FILE).

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

5.2 SBOM module design SWD-016

Overview

The c5dec.core.sbom module provides a functional (non-class-based) interface for generating, validating, importing, and comparing Software Bills of Materials. It wraps the external Syft tool for generation and implements its own parsing, validation, and Doorstop-import logic.

Activity diagram

@startuml sbom_activity
skinparam backgroundColor White
skinparam activityBackgroundColor LightBlue
skinparam activityBorderColor DarkBlue
skinparam ArrowColor DarkBlue
skinparam dpi 150

title "c5dec.core.sbom — SBOM Workflow"

|User / CLI|
start
:Invoke c5dec sbom <subcommand>;

|sbom module|
if (subcommand == generate?) then (yes)
  :check_syft_installed()|
  if (Syft available?) then (yes)
    :Run syft on target_path;
    :Write SBOM to output_path;
    :Return output_path;
  else (no)
    :Raise C5decError;
    detach
  endif
elseif (subcommand == validate?) then (yes)
  :validate_sbom(sbom_path)|
  :Load JSON schema (CycloneDX/SPDX);
  :Validate against schema;
  :Return validation result;
elseif (subcommand == import?) then (yes)
  :parse_cyclonedx_sbom(sbom_path)|
  :Extract component list;
  :import_sbom_to_doorstop()|
  :Create Doorstop items per component;
  :Return item list;
else (diff)
  :compare_sboms(sbom_a, sbom_b)|
  :Identify added / removed / changed;
  :export_sbom_diff_report()|
  :Write diff report to output_path;
endif

|User / CLI|
:Display result / path to output;
stop

@enduml

Public API summary

Function	Description
`check_syft_installed()`	Verify Syft binary is on PATH
`generate_sbom(target, fmt, output)`	Invoke Syft and produce CycloneDX/SPDX JSON
`parse_cyclonedx_sbom(path)`	Deserialize CycloneDX JSON into a dict tree
`import_sbom_to_doorstop(sbom, doc)`	Create Doorstop items from SBOM components
`compare_sboms(sbom_a, sbom_b)`	Return added/removed/changed component delta
`export_sbom_diff_report(diff, path)`	Write delta report to a text file
`validate_sbom(path)`	Validate SBOM against its JSON schema

Key design decisions

The module is intentionally function-oriented rather than class-based to keep the CLI glue code lean; each c5dec sbom subcommand maps directly to one function.
Syft is treated as an external dependency; check_syft_installed() provides a clear user-facing error when it is absent.
Path constants (SBOM_LOG_FILE) are resolved via c5dec.settings.
Both CycloneDX and SPDX formats are supported; format aliases are normalized internally via a format_map dict.

Parent links: ARC-003 C5-DEC CAD subsystems architecture, ARC-004 C5-DEC CAD system architecture

6.0 DocEngine template design

This section documents the design of the C5-DEC DocEngine template system, covering the report, presentation, and CRA technical documentation template types and the v2 configuration schema introduced in C5-DEC CAD v1.2.

6.1 DocEngine template types and configuration design SWD-017

Overview

The DocEngine (c5dec docengine) scaffolds three Quarto-based document templates from the source trees stored in c5dec/assets/:

CLI argument	Source tree	Output format
`report`	`c5dec/assets/report/`	PDF (LaTeX) + HTML
`presentation`	`c5dec/assets/presentation/`	RevealJS HTML
`cra-tech-doc`	`c5dec/assets/cra_tech_doc_template/`	PDF (LaTeX)

Template directory structure

SWD-017 diagram 1

c5dec_config_v2.yml schema

The v2 configuration format extends the original c5dec_config.yml with structured project metadata blocks used by custom_vars_v2.py to populate Quarto template variables at render time.

UML Diagram

Key differences from v1

Feature	`c5dec_config.yml` (v1)	`c5dec_config_v2.yml` (v2)
Author handling	Single string	List of author objects
Organization block	Not present	Explicit `organization` block
Document metadata	Flattened	Nested `document` block
Quarto overrides	Not present	Explicit `quarto` block
Used by	`_quarto.yml` Lua filter	`custom_vars_v2.py` pre-processor

DocEngine CLI design

UML Diagram

CRA technical documentation template chapters

The cra-tech-doc template pre-populates chapters aligned with CRA Annex V technical documentation obligations:

Chapter file	CRA Annex V obligation
`01-product-description.qmd`	Product description and intended purpose
`02-design-development.qmd`	Design, development, and production processes
`03-risk-assessment.qmd`	Cybersecurity risk assessment
`04-applied-standards.qmd`	Applied harmonised standards and common specifications
`05-eu-declaration.qmd`	EU declaration of conformity reference
`06-sbom.qmd`	Software Bill of Materials

Settings constants

Path constants relating to DocEngine are defined in c5dec/settings.py:

Constant	Path
`REPORT_TEMPLATE_PATH`	`c5dec/assets/report/`
`PRESENTATION_TEMPLATE_PATH`	`c5dec/assets/presentation/`
`CRA_TECH_DOC_TEMPLATE_PATH`	`c5dec/assets/cra_tech_doc_template/`

Parent links: ARC-003 C5-DEC CAD subsystems architecture

7.0 CPSSA TARA integration design

This section specifies the software design of the Cyber-Physical System Security Assessment (CPSSA) subsystem implemented in c5dec/core/cpssa/.

The CPSSA module bridges C5-DEC SSDLC projects with external Threat Analysis and Risk Assessment (TARA) tooling — Threagile, OWASP pytm, and pyfair — through five stateless integration functions.

The design is organized into the following modules:

Sub-section	Function / area	Responsibility
7.1	Doorstop ingestion helpers	Read and normalize Doorstop architecture items
7.2	Threagile mapping layer	Map Doorstop attributes to Threagile schema values
7.3	`create_threat_model()`	Generate Threagile YAML, pytm Python, or pytm JSON from ARC items
7.4	`generate_cpssa_report()`	Produce structured Markdown CPSSA report from threat model
7.5	`generate_dfd()`	Derive PlantUML Data Flow Diagram from ARC items
7.6	`generate_fair_input_template()`	Generate FAIR calibration YAML template
7.7	`run_quantitative_risk_analysis()`	FAIR-based Monte Carlo simulation via pyfair
7.8	Sidecar files and data conventions	Threat actors, assumptions, and Doorstop field conventions
7.9	CPSSA orchestration and CLI integration	CLI subcommands and end-to-end workflow

7.1 Doorstop ingestion helpers SWD-019

Overview

The ingestion layer reads Doorstop architecture items (ARC/HARC/LARC) from a C5-DEC SSDLC project and normalizes them into plain Python dicts suitable for consumption by the threat-model generators and DFD builder.

All ingestion helpers are private functions in c5dec/core/cpssa/cpssa.py.

Key functions

Function	Purpose
`_read_doorstop_items(doc_path)`	Reads all Markdown item files from a Doorstop document directory, parsing YAML frontmatter and body text into a list of dicts
`_doorstop_text(item)`	Extracts the display text from an item dict (falls back from `header` to first `# Heading` to first 60 chars of `text`)
`_find_arc_dir(project_path, arc_folder)`	Locates the architecture item directory by searching for `arc`, `harc`, or `larc` subdirectories containing `.doorstop.yml`
`_find_specs_root(project_path)`	Discovers the Doorstop specs root directory from a project path
`_collect_arc_items(arc_dir, limit)`	Reads and filters architecture items, enforcing the 40-item processing cap
`_collect_links(item)`	Extracts Doorstop link UIDs from an item's `links` field
`_collect_flows(item)`	Parses the `flows` YAML field for data-flow definitions; falls back to ARC-prefixed links when `flows` is absent

Processing pipeline

Doorstop .md files
    → _read_doorstop_items() — parse YAML frontmatter + body
    → _collect_arc_items() — filter, cap at 40 items
    → _collect_flows() / _collect_links() — extract relationships
    → normalized dicts ready for threat-model / DFD generation

Data flow fallback convention

When the flows field is absent from an item, the ingestion layer falls back to reading entries in the Doorstop links field whose UID starts with an architecture-document prefix (ARC-, HARC-, LARC-) and constructs minimal flow dicts using item-level protocol and port fields.

UML Diagram

Parent links: ARC-009 CPSSA subsystem – component diagram

7.2 Threagile mapping layer SWD-020

Overview

The Threagile mapping layer (c5dec/core/cpssa/cpssa.py) translates Doorstop architecture item attributes into Threagile-compatible schema values. Mappings are configured externally in threagile-mappings.yml and loaded lazily at first use.

Mapping file

threagile-mappings.yml is a YAML file colocated with cpssa.py. Each top-level key is a mapping section (e.g. protocol, authentication) and each value is a {doorstop_value: threagile_value} dict.

Supported mapping sections

Section	Purpose
`protocol`	Communication protocol names
`authentication`	Authentication mechanism types
`authorization`	Authorization model types
`technology`	Threagile technology classification
`asset_type`	Technical asset type (`datastore`, `external-entity`, `process`)
`encryption`	Encryption status
`machine`	Physical vs. virtual deployment
`size`	Asset size classification
`confidentiality`	CIA confidentiality rating
`integrity`	CIA integrity rating
`availability`	CIA availability rating
`trust_boundary_type`	Trust boundary classification
`data_format`	Data format classification

Key functions

Function	Purpose
`_load_threagile_mappings()`	Lazy-loads and caches `threagile-mappings.yml`; normalizes all keys to lowercase
`_map_threagile(section, value, default)`	Generic lookup: returns the mapped value or the default
`_map_protocol(raw)`	Maps protocol name to Threagile protocol
`_map_authentication(raw)`	Maps authentication type
`_map_authorization(raw)`	Maps authorization model
`_map_technology(raw_type)`	Maps asset type to Threagile technology
`_map_asset_type(raw_type)`	Maps to `datastore`, `external-entity`, or `process`
`_map_encryption(raw)`	Maps encryption status (including boolean `is_encrypted` fallback)
`_map_machine(raw)`	Maps physical/virtual classification
`_map_confidentiality(raw)` / `_map_integrity(raw)` / `_map_availability(raw)`	Map CIA ratings
`_sanitise_name(raw, max_len)`	Normalize display names to safe identifiers
`_safe_threagile_id(raw, max_len)`	Generate URL-safe Threagile-compatible identifiers

Design rationale

Externalizing the mappings to a YAML file decouples the Doorstop schema vocabulary from the Threagile schema. New Doorstop attribute values can be supported by editing threagile-mappings.yml without modifying Python code. keys and value ranges. The model hash is the SHA-256 of the canonical JSON bytes, stored in C.meta.json alongside the binary C.npy matrix.

Parent links: ARC-009 CPSSA subsystem – component diagram

7.3 Threat model generation — `create_threat_model()` SWD-021

Overview

create_threat_model() reads Doorstop architecture (ARC/HARC/LARC) items from a C5-DEC SSDLC project and produces a threat-model template in one of three output formats: Threagile YAML, pytm Python script, or pytm JSON.

Function signature

def create_threat_model(
    project_path: Path,
    output_path: Optional[Path] = None,
    format: str = "threagile",
    arc_folder: Optional[str] = None,
    specs_path: Optional[Path] = None,
) -> str:

Processing pipeline

UML Diagram

Output formats

Format	Default file	Content
`threagile`	`threat-model.yml`	Complete Threagile-compatible YAML with technical assets, trust boundaries, communication links, data assets, abuse cases, and security requirements
`pytm-python`	`threat-model.py`	Executable pytm Python script with `TM`, `Boundary`, `Server`/`ExternalEntity`/`Datastore`/`Process`, and `Dataflow` objects
`pytm-json`	`threat-model.json`	JSON representation of the pytm model dict

Threagile output structure

The Threagile YAML contains:

technical_assets: One entry per ARC item with technology, encryption, CIA ratings, machine type, data formats
trust_boundaries: Zone-based groupings from the zone attribute
communication_links: Data flows derived from flows field (with link fallback)
data_assets: Referenced data assets from data_assets/data_assets_processed/data_assets_stored
abuse_cases: Synthesized from trust-boundary crossings and internet-facing assets
security_requirements: Extracted from items with security-related attributes

Sidecar files

Two optional YAML files in the ARC item directory enrich the output:

threat-actors.yml — threat actor definitions
assumptions.yml — documented assumptions

Processing limit

At most 40 architecture items are processed per invocation.

Parent links: ARC-009 CPSSA subsystem – component diagram

7.4 CPSSA report generation — `generate_cpssa_report()` SWD-022

Overview

generate_cpssa_report() consumes a Threagile-compatible YAML threat model and generates a structured Markdown CPSSA report suitable for Quarto / DocEngine publishing.

Function signature

def generate_cpssa_report(
    threat_model_path: Union[str, Path],
    output_path: Optional[Union[str, Path]] = None,
) -> str:

Report structure

The generated report contains 10 numbered sections:

#	Section	Content source
1	Executive summary	Placeholder for human review
2	System description	`business_overview` and `technical_overview` from YAML
3	Assets and dependencies	`technical_assets`, `data_assets`, `trust_boundaries`
4	Threat landscape	STRIDE categories, `threat_actors`, `assumptions` from sidecar data
5	Attack scenarios	`abuse_cases` section
6	Risk assessment	Placeholder table
7	Security requirements	`security_requirements` map from YAML
8	Recommended controls	Placeholder table
9	Residual risk	Placeholder for human review
10	Conclusion	Placeholder for human review

Processing flow

threat-model.yml
    → YAML parse
    → Extract technical_assets → render asset table
    → Extract data_assets → render data asset table
    → Extract trust_boundaries → render boundary list
    → Extract abuse_cases → render STRIDE-categorized scenarios
    → Extract security_requirements → render requirements table
    → Inject placeholder prompts for sections requiring human review
    → Write cpssa-report.md

Output conventions

Written to output_path or <threat_model_dir>/cpssa-report.md by default
Placeholder prompts use the format _[Complete this section.]_
Returns the absolute path of the written file
Raises C5decError on unrecoverable errors (file not found, parse failure)

Parent links: ARC-009 CPSSA subsystem – component diagram

7.5 DFD generation — `generate_dfd()` SWD-023

Overview

generate_dfd() derives a PlantUML Data Flow Diagram from Doorstop architecture (ARC/HARC/LARC) items. The output is cross-referenceable with the Threagile YAML generated by create_threat_model().

Function signature

def generate_dfd(
    project_path: Union[str, Path],
    output_path: Optional[Union[str, Path]] = None,
    arc_folder: Optional[str] = None,
) -> str:

Processing pipeline

ARC item files
    → _collect_arc_items() — up to 40 items
    → Classify each item:
        datastore → PlantUML "database"
        external-entity → PlantUML "actor"
        process → PlantUML "component"
    → Group by zone → PlantUML "rectangle" trust boundaries
    → Extract flows (_collect_flows with link fallback)
    → Label: "flow-N [protocol / enc-status / auth]"
    → Write cpssa-dfd.puml

Element classification

Asset type is determined by _dfd_kind_for_item() using the type attribute:

Doorstop `type` values	DFD element	PlantUML keyword
`database`, `datastore`, `historian`	Data store	`database`
`actor`, `external`, `user`, `attacker`	External entity	`actor`
All others	Process	`component`

Color scheme

Element type	Color
Process	`#AED6F1`
External entity	`#A9DFBF`
Data store	`#FAD7A0`
Trust boundary	`#E8DAEF`

Cross-reference consistency

The DFD output matches the Threagile threat model in:

Element IDs: Generated via _safe_threagile_id() (lowercase, hyphens, max 31 chars)
Trust boundary IDs: _safe_threagile_id("<zone>-zone")
Flow labels: flow-N matching Threagile communication_links keys
Flow annotations: [protocol / enc-status / auth] matching Threagile link attributes

Output

Written to output_path or <project_dir>/cpssa-dfd.puml by default
Renderable with java -jar plantuml.jar cpssa-dfd.puml
Returns the absolute path of the written file

Parent links: ARC-009 CPSSA subsystem – component diagram

7.6 FAIR input template generation — `generate_fair_input_template()` SWD-024

Overview

generate_fair_input_template() generates a FAIR calibration YAML template from a threat model so that per-scenario PERT distribution bounds can be calibrated before running the quantitative risk analysis.

Function signature

def generate_fair_input_template(
    model_path: Union[str, Path],
    output_path: Optional[Union[str, Path]] = None,
) -> str:

Input format auto-detection

The function accepts both Threagile YAML and pytm JSON threat models, auto-detected by file extension:

.yml / .yaml → Threagile YAML (scenarios from abuse_cases)
.json → pytm JSON (one synthesized scenario per element when no explicit abuse_cases are present)

Generated template structure

defaults:
  lef:   { low: 1, mode: 5, high: 20 }
  lm:    { low: 10000, mode: 100000, high: 1000000 }
  # --- advanced decomposition (uncomment to override lef/lm) ---
  # tef: { low: ..., mode: ..., high: ... }
  # vulnerability: { low: ..., mode: ..., high: ... }
  # contact: { low: ..., mode: ..., high: ... }
  # action: { low: ..., mode: ..., high: ... }
  # tc: { low: ..., mode: ..., high: ... }
  # cs: { low: ..., mode: ..., high: ... }
  # pl: { low: ..., mode: ..., high: ... }
  # sl: { low: ..., mode: ..., high: ... }
  # slef: { low: ..., mode: ..., high: ... }
  # slem: { low: ..., mode: ..., high: ... }

scenarios:
  scenario-name-1:
    lef: { low: ..., mode: ..., high: ... }
    lm:  { low: ..., mode: ..., high: ... }
  scenario-name-2:
    # ...

FAIR model tree nodes

The template exposes the full FAIR model tree:

Node	Description	Active by default
`lef`	Loss Event Frequency	Yes
`lm`	Loss Magnitude	Yes
`tef`	Threat Event Frequency	No (commented)
`vulnerability`	Vulnerability	No (commented)
`contact`	Contact Frequency	No (commented)
`action`	Probability of Action	No (commented)
`tc`	Threat Capability	No (commented)
`cs`	Control Strength	No (commented)
`pl`	Primary Loss	No (commented)
`sl`	Secondary Loss	No (commented)
`slef`	Secondary Loss Event Frequency	No (commented)
`slem`	Secondary Loss Event Magnitude	No (commented)

To use a finer decomposition, uncomment child nodes and remove their parent.

Default PERT bounds

Parameter	Low	Mode	High
LEF	1	5	20
LM	10,000	100,000	1,000,000

Output

Written to output_path or <threat_model_dir>/fair-params.yml by default
Returns the absolute path of the written file

Parent links: ARC-009 CPSSA subsystem – component diagram

7.7 Quantitative risk analysis — `run_quantitative_risk_analysis()` SWD-025

Overview

run_quantitative_risk_analysis() runs a FAIR-based Monte Carlo simulation via the pyfair library for each abuse-case scenario and produces an Annualised Loss Expectancy (ALE) summary with supporting output artifacts.

Function signature

def run_quantitative_risk_analysis(
    threat_model_path: Union[str, Path],
    output_path: Optional[Union[str, Path]] = None,
    simulations: int = 10000,
    fair_params_path: Optional[Union[str, Path]] = None,
) -> str:

Calibration parameter resolution

Parameters are resolved in order of precedence:

Dedicated FAIR parameters file (fair_params_path) — YAML mapping scenario names to PERT bounds (generated by generate_fair_input_template)
Inline in threat model — abuse case values as dicts containing FAIR node keys (lef, lm, tef, vulnerability, etc.)
Fallback defaults — conservative placeholders (a warning is emitted for each scenario that uses defaults)

Processing pipeline

UML Diagram

FAIR model configuration

For each scenario, a pyfair.FairModel is created with PERT distributions. The simple path uses:

LEF (Loss Event Frequency): model.input_data("Loss Event Frequency", low, mode, high)
LM (Loss Magnitude): model.input_data("Loss Magnitude", low, mode, high)

Advanced decomposition nodes (when provided): tef, vulnerability, contact, action, tc, cs, pl, sl, slef, slem.

Output artifacts

All outputs are written to the output_path directory (defaults to the threat model's parent directory):

File	Content
`cpssa-risk-summary.md`	Markdown summary with input parameters table and ALE statistics per scenario
`cpssa-risk-results.csv`	Raw Monte Carlo simulation results
`cpssa-risk-{N}.html`	One interactive pyfair report per scenario (indexed from 1), comparing individual model against meta-model

Dependencies

pyfair — FAIR Monte Carlo simulation engine (imported at module level)
pyyaml — YAML parsing for threat model and FAIR parameters

Error handling

Raises C5decError if the threat model file is not found or unparseable
Emits warning-level log messages for scenarios using fallback defaults
Returns the absolute path of cpssa-risk-summary.md

Parent links: ARC-009 CPSSA subsystem – component diagram

7.8 Sidecar files and Doorstop field conventions SWD-026

Overview

The CPSSA module relies on Doorstop architecture item attributes and optional sidecar files to parameterize threat-model generation, DFD construction, and risk analysis. This item documents the data conventions.

Doorstop item attributes

Core fields

Field	Doorstop attribute	Notes
Node label	`header` or UID	Falls back to UID, then first 60 chars of `text`
Asset type	`type`	`server`, `plc`, `database`, `actor`, `firewall`, etc.
Trust zone	`zone`	Maps to Threagile trust boundary / pytm Boundary
Data flows	`flows`	Primary mechanism; falls back to ARC-prefixed `links`

Threagile-specific fields

Field	Doorstop attribute	Default
Technology	`type`	`unknown-technology`
Encryption	`encryption` / `is_encrypted`	`none` (`transparent` if boolean true)
Machine	`machine`	`physical` for PLC/RTU/HMI/workstation; `virtual` otherwise
Size	`size`	`component`
Confidentiality	`confidentiality`	`confidential`
Integrity	`integrity`	`critical`
Availability	`availability`	`critical`
Data formats	`data_formats_accepted`	`["json"]`
Owner	`vendor`	`TBD`
Internet-facing	`internet`	`false`
Out of scope	`out_of_scope`	`false`

pytm-specific fields

Field	Doorstop attribute	Notes
OS	`os` / `os_version`	Operating system
Port	`port`	Listening port
Protocol	`protocol`	Communication protocol
Security controls	`is_encrypted`, `has_access_control`, `authenticates_source`	Boolean flags

Data flows (`flows` field)

The flows field is the primary mechanism for defining data-flow edges:

flows:
  - target: ARC-006
    protocol: OPC-UA
    port: 4840
    encrypted: false
    authentication: none
    authorization: none
    vpn: false
    readonly: false
    data_assets_sent: [sensor-readings]
    data_assets_received: [control-commands]

When flows is absent, the module falls back to reading ARC-prefixed entries in links and constructing minimal flow dicts from item-level protocol and port fields.

Sidecar files

Two optional YAML files placed in the ARC item directory:

File	Content	Used by
`threat-actors.yml`	Threat actor definitions	Threagile `threat_actors` section, CPSSA report
`assumptions.yml`	Documented security assumptions	Threagile `assumptions` section, CPSSA report

Processing limit

At most 40 architecture items are processed per invocation across all CPSSA functions.

Parent links: ARC-009 CPSSA subsystem – component diagram

7.9 CPSSA orchestration and CLI integration SWD-027

Overview

The CPSSA module exposes five stateless public functions that form a complete TARA workflow pipeline. All functions are re-exported from c5dec.core.cpssa and integrated into the CLI via c5dec cpssa subcommands.

Public API

from c5dec.core.cpssa import (
    create_threat_model,
    generate_cpssa_report,
    generate_dfd,
    generate_fair_input_template,
    run_quantitative_risk_analysis,
)

End-to-end workflow

UML Diagram

CLI subcommands

Command	Function called	Description
`c5dec cpssa create-threat-model [--format F] [--arc-folder P]`	`create_threat_model()`	Generate Threagile / pytm threat model
`c5dec cpssa generate-report --model M`	`generate_cpssa_report()`	Generate CPSSA Markdown report
`c5dec cpssa generate-dfd [--project P] [--arc-folder P]`	`generate_dfd()`	Generate PlantUML DFD
`c5dec cpssa fair-input --model M`	`generate_fair_input_template()`	Generate FAIR calibration template
`c5dec cpssa risk-analysis --model M [--simulations N] [--fair-params F]`	`run_quantitative_risk_analysis()`	Run FAIR Monte Carlo analysis

Function conventions

All five functions follow the same design conventions:

Accept Path-like inputs
Write output to disk (configurable output_path)
Return the absolute path string of the primary written file
Raise common.C5decError on unrecoverable errors
Log progress and warnings via common.logger(__name__)

Package layout

c5dec/core/cpssa/
├── __init__.py                # Public re-exports
├── cpssa.py                   # All five TARA integration functions + helpers
├── threagile-mappings.yml     # Doorstop → Threagile schema value mappings
├── threagile-schema.json      # Threagile JSON schema reference
└── examples/
    └── water-treatment/       # Self-contained ICS / SCADA demo

Dependencies

Library	Purpose
`pyfair`	FAIR Monte Carlo simulation engine
`pyyaml`	YAML parsing for threat models, mappings, sidecar files
`c5dec.common`	Logging (`logger`), error handling (`C5decError`)
`c5dec.settings`	Path constants

Parent links: ARC-009 CPSSA subsystem – component diagram

1.0 Class and package structure

1.1 CCT class diagram SWD-001

Diagram

1.2 C5-DEC CAD classes SWD-002

Diagram

1.3 C5-DEC CAD packages SWD-003

Diagram

1.4 Centralized settings module SWD-018

Overview

Design rationale

Usage convention

2.0 CCT data model

2.1 C5-DEC CCT data model part 1 SWD-004

Diagram

2.2 C5-DEC CCT data model part 2 SWD-005

Diagram

2.3 C5-DEC CCT Doorstop metadata SWD-006

Diagram

2.4 C5-DEC CCT Doorstop Markdown body SWD-007

Diagram

3.0 Security classes and evaluation

3.1 C5-DEC CCT security functional class SWD-008

Diagram

3.2 C5-DEC CCT security assurance class SWD-009

Diagram

3.3 C5-DEC CCT element operations SWD-010

Diagram

3.4 C5-DEC CCT CEM evaluation activities SWD-011

Diagram

3.5 C5-DEC CCT sec. assurance and eval. act. dependencies SWD-012

Diagram

4.0 Document models

4.1 C5-DEC CCT generic Doorstop document SWD-013

Diagram

4.2 C5-DEC CCT security target data model SWD-014

Diagram

5.0 CRA and SBOM compliance modules

5.1 CRA module class diagram SWD-015

Overview

Diagram

Key design decisions

5.2 SBOM module design SWD-016

Overview

Activity diagram

Public API summary

Key design decisions

6.0 DocEngine template design

6.1 DocEngine template types and configuration design SWD-017

Overview

Template directory structure

c5dec_config_v2.yml schema

Key differences from v1

DocEngine CLI design

CRA technical documentation template chapters

Settings constants

7.0 CPSSA TARA integration design

7.1 Doorstop ingestion helpers SWD-019

Overview

Key functions

Processing pipeline

Data flow fallback convention

7.2 Threagile mapping layer SWD-020

Overview

Mapping file

Supported mapping sections

Key functions

Design rationale

7.3 Threat model generation — create_threat_model() SWD-021

Overview

Function signature

Processing pipeline

Output formats

Threagile output structure

Sidecar files

Processing limit

7.4 CPSSA report generation — generate_cpssa_report() SWD-022

Overview

Function signature

Report structure

Processing flow

7.3 Threat model generation — `create_threat_model()` SWD-021

7.4 CPSSA report generation — `generate_cpssa_report()` SWD-022

7.5 DFD generation — `generate_dfd()` SWD-023

7.6 FAIR input template generation — `generate_fair_input_template()` SWD-024

7.7 Quantitative risk analysis — `run_quantitative_risk_analysis()` SWD-025

Data flows (`flows` field)
