1 TC: Test containerized deployment on x86-64 TSS-001

Test the C5-DEC initialization and setup scripts for containerized deployment.

Preconditions and setup actions

Test steps

  1. Clone this repository:
git clone https://github.com/AbstractionsLab/c5dec.git
  1. Start Docker Desktop if not already running;
  2. Open the project folder in VS Code;
  3. Select the "Reopen in Container" option in the notification that pops up in VS Code; or launch the command palette (Cmd/Ctrl+Shift+P) and select "Dev Containers: Reopen in Container" from the list of available commands. You will then be prompted to select a dev container configuration: the C5-DEC CAD dev container provides the bulk of the functionality, while the C5-DEC CAD cryptography dev container provides an environment with OpenSSL and the OQS-OpenSSL provider installed.

Selecting between C5-DEC dev containers

  1. Select the C5-DEC CAD dev container. Once selected, wait for the container to build and start. This may take a few minutes, depending on your internet connection and the performance of your machine.
  2. Once the container is up and running, you will see a terminal window open in VS Code, and you can start using C5-DEC CAD. If a terminal window does not open automatically, you can open a new terminal by selecting "Terminal" from the top menu and then "New Terminal". This will open a terminal window inside the container, with a Poetry shell activated. If the shell is not automatically activated upon reopening the project in a container, simply run
poetry shell

Expected outcome

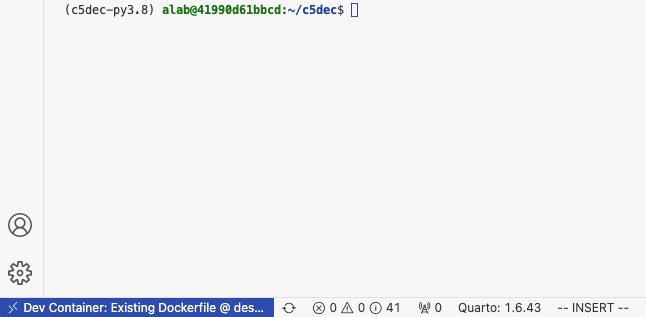

  1. Container creation done successfully, a new VS Code terminal session connecting to the C5-DEC container opened and Python environment via Poetry shell activated, e.g., similar to the view below:

C5-DEC dev container open in VS Code

Child links: TRS-001 TCER: containerized deployment x86-64

Attribute Value
platform GNU/Linux x86-64 (Dockerized C5-DEC deployment environment)
execution_type Manual
verification_method Test (T)
release stable
complexity 2
test_data see referenced files
version 1.0

2 TC: Test containerized deployment on arm64 TSS-002

Test the C5-DEC initialization and setup scripts for containerized deployment.

Preconditions and setup actions

Test steps

  1. Clone this repository:
git clone https://github.com/AbstractionsLab/c5dec.git
  1. Open the project folder in VS Code;
  2. Select the "Reopen in Container" option in the notification that pops up in VS Code; or launch the command palette (Cmd/Ctrl+Shift+P) and select "Dev Containers: Reopen in Container" from the list of available commands. You will then be prompted to select a dev container configuration: the C5-DEC CAD dev container provides the bulk of the functionality, while the C5-DEC CAD cryptography dev container provides an environment with OpenSSL and the OQS-OpenSSL provider installed.

Selecting between C5-DEC dev containers

  1. Select the C5-DEC CAD dev container. Once selected, wait for the container to build and start. This may take a few minutes, depending on your internet connection and the performance of your machine.
  2. Once the container is up and running, you will see a terminal window open in VS Code, and you can start using C5-DEC CAD. If a terminal window does not open automatically, you can open a new terminal by selecting "Terminal" from the top menu and then "New Terminal". This will open a terminal window inside the container, with a Poetry shell activated. If the shell is not automatically activated upon reopening the project in a container, simply run
poetry shell

Expected outcome

  1. Container creation done successfully, a new VS Code terminal session connecting to the C5-DEC container opened and Python environment via Poetry shell activated, e.g., similar to the view below:

C5-DEC dev container open in VS Code

Child links: TRS-002 TCER: containerized deployment arm64

Attribute Value
platform GNU/Linux arm64 (Dockerized C5-DEC deployment environment)
execution_type Manual
verification_method Test (T)
release stable
complexity 2
test_data see referenced files
version 1.0

3 TC: Test PQ cryptography container TSS-003

Test the C5-DEC cryptography dev container deployment.

Preconditions and setup actions

Test steps

  1. Clone this repository:
git clone https://github.com/AbstractionsLab/c5dec.git
  1. Open the project folder in VS Code;
  2. Select the C5-DEC cryptography dev container, to create and connect to the OQS-OpenSSL provider, i.e., select the "Reopen in Container" option in the notification that pops up in VS Code; or launch the command palette (Cmd/Ctrl+Shift+P) and select "Dev Containers: Reopen in Container" from the list of available commands. Then, select C5-DEC cryptography dev container, which provides an environment with OpenSSL and the OQS-OpenSSL provider installed.

Selecting between C5-DEC dev containers

This allows you to use post-quantum cryptography algorithms while benefitting from direct access to your host file system, thanks to volume mounting. To use the OQS-OpenSSL provider, we recommend consulting the OQS-OpenSSL usage documentation.

  1. To get a list of the available quantum-safe signature algorithms, run the following command in the VS Code terminal:
openssl list -signature-algorithms -provider oqsprovider
  1. To get a list of the available quantum-safe KEM algorithms, run:
openssl list -kem-algorithms -provider oqsprovider

Expected outcome

  1. The command should return a list of the available quantum-safe signature algorithms:
{ 1.2.840.113549.1.1.1, 2.5.8.1.1, RSA, rsaEncryption } @ default
  { 1.2.840.10040.4.1, 1.3.14.3.2.12, DSA, DSA-old, dsaEncryption, dsaEncryption-old } @ default
  { 1.2.840.10040.4.3, 1.3.14.3.2.27, DSA-SHA, DSA-SHA-1, DSA-SHA1, DSA-SHA1-old, dsaWithSHA, dsaWithSHA1, dsaWithSHA1-old } @ default
  { 1.3.101.112, ED25519 } @ default
  { 1.3.101.113, ED448 } @ default
  { 1.2.156.10197.1.301, SM2 } @ default
  { 2.16.840.1.101.3.4.3.1, DSA-SHA2-224, DSA-SHA224, dsa_with_SHA224 } @ default
  { 2.16.840.1.101.3.4.3.2, DSA-SHA2-256, DSA-SHA256, dsa_with_SHA256 } @ default
  { 1.2.840.1.101.3.4.3.3, DSA-SHA2-384, DSA-SHA384, dsa_with_SHA384, id-dsa-with-sha384 } @ default
  { 1.2.840.1.101.3.4.3.4, DSA-SHA2-512, DSA-SHA512, dsa_with_SHA512, id-dsa-with-sha512 } @ default
  { 2.16.840.1.101.3.4.3.5, DSA-SHA3-224, dsa_with_SHA3-224, id-dsa-with-sha3-224 } @ default
  { 2.16.840.1.101.3.4.3.6, DSA-SHA3-256, dsa_with_SHA3-256, id-dsa-with-sha3-256 } @ default
  { 2.16.840.1.101.3.4.3.7, DSA-SHA3-384, dsa_with_SHA3-384, id-dsa-with-sha3-384 } @ default
  { 2.16.840.1.101.3.4.3.8, DSA-SHA3-512, dsa_with_SHA3-512, id-dsa-with-sha3-512 } @ default
  { 1.3.36.3.3.1.2, ripemd160WithRSA, RSA-RIPEMD160 } @ default
  { 1.2.840.113549.1.1.5, RSA-SHA-1, RSA-SHA1, sha1WithRSAEncryption } @ default
  { 1.2.840.113549.1.1.14, RSA-SHA2-224, RSA-SHA224, sha224WithRSAEncryption } @ default
  { 1.2.840.113549.1.1.11, RSA-SHA2-256, RSA-SHA256, sha256WithRSAEncryption } @ default
  { 1.2.840.113549.1.1.12, RSA-SHA2-384, RSA-SHA384, sha384WithRSAEncryption } @ default
  { 1.2.840.113549.1.1.13, RSA-SHA2-512, RSA-SHA512, sha512WithRSAEncryption } @ default
  { 1.2.840.113549.1.1.15, RSA-SHA2-512/224, RSA-SHA512-224, sha512-224WithRSAEncryption } @ default
  { 1.2.840.113549.1.1.16, RSA-SHA2-512/256, RSA-SHA512-256, sha512-256WithRSAEncryption } @ default
  { 2.16.840.1.101.3.4.3.13, id-rsassa-pkcs1-v1_5-with-sha3-224, RSA-SHA3-224 } @ default
  { 2.16.840.1.101.3.4.3.14, id-rsassa-pkcs1-v1_5-with-sha3-256, RSA-SHA3-256 } @ default
  { 2.16.840.1.101.3.4.3.15, id-rsassa-pkcs1-v1_5-with-sha3-384, RSA-SHA3-384 } @ default
  { 2.16.840.1.101.3.4.3.16, id-rsassa-pkcs1-v1_5-with-sha3-512, RSA-SHA3-512 } @ default
  { 1.2.156.10197.1.504, RSA-SM3, sm3WithRSAEncryption } @ default
  ED25519ph @ default
  ED25519ctx @ default
  ED448ph @ default
  ECDSA @ default
  { 1.2.840.10045.4.1, ECDSA-SHA-1, ECDSA-SHA1, ecdsa-with-SHA1 } @ default
  { 1.2.840.10045.4.3.1, ECDSA-SHA2-224, ECDSA-SHA224, ecdsa-with-SHA224 } @ default
  { 1.2.840.10045.4.3.2, ECDSA-SHA2-256, ECDSA-SHA256, ecdsa-with-SHA256 } @ default
  { 1.2.840.10045.4.3.3, ECDSA-SHA2-384, ECDSA-SHA384, ecdsa-with-SHA384 } @ default
  { 1.2.840.10045.4.3.4, ECDSA-SHA2-512, ECDSA-SHA512, ecdsa-with-SHA512 } @ default
  { 2.16.840.1.101.3.4.3.9, ECDSA-SHA3-224, ecdsa_with_SHA3-224, id-ecdsa-with-sha3-224 } @ default
  { 2.16.840.1.101.3.4.3.10, ECDSA-SHA3-256, ecdsa_with_SHA3-256, id-ecdsa-with-sha3-256 } @ default
  { 2.16.840.1.101.3.4.3.11, ECDSA-SHA3-384, ecdsa_with_SHA3-384, id-ecdsa-with-sha3-384 } @ default
  { 2.16.840.1.101.3.4.3.12, ECDSA-SHA3-512, ecdsa_with_SHA3-512, id-ecdsa-with-sha3-512 } @ default
  HMAC @ default
  SIPHASH @ default
  POLY1305 @ default
  CMAC @ default
  dilithium2 @ oqsprovider
  p256_dilithium2 @ oqsprovider
  rsa3072_dilithium2 @ oqsprovider
  dilithium3 @ oqsprovider
  p384_dilithium3 @ oqsprovider
  dilithium5 @ oqsprovider
  p521_dilithium5 @ oqsprovider
  mldsa44 @ oqsprovider
  p256_mldsa44 @ oqsprovider
  rsa3072_mldsa44 @ oqsprovider
  mldsa44_pss2048 @ oqsprovider
  mldsa44_rsa2048 @ oqsprovider
  mldsa44_ed25519 @ oqsprovider
  mldsa44_p256 @ oqsprovider
  mldsa44_bp256 @ oqsprovider
  mldsa65 @ oqsprovider
  p384_mldsa65 @ oqsprovider
  mldsa65_pss3072 @ oqsprovider
  mldsa65_rsa3072 @ oqsprovider
  mldsa65_p256 @ oqsprovider
  mldsa65_bp256 @ oqsprovider
  mldsa65_ed25519 @ oqsprovider
  mldsa87 @ oqsprovider
  p521_mldsa87 @ oqsprovider
  mldsa87_p384 @ oqsprovider
  mldsa87_bp384 @ oqsprovider
  mldsa87_ed448 @ oqsprovider
  falcon512 @ oqsprovider
  p256_falcon512 @ oqsprovider
  rsa3072_falcon512 @ oqsprovider
  falconpadded512 @ oqsprovider
  p256_falconpadded512 @ oqsprovider
  rsa3072_falconpadded512 @ oqsprovider
  falcon1024 @ oqsprovider
  p521_falcon1024 @ oqsprovider
  falconpadded1024 @ oqsprovider
  p521_falconpadded1024 @ oqsprovider
  sphincssha2128fsimple @ oqsprovider
  p256_sphincssha2128fsimple @ oqsprovider
  rsa3072_sphincssha2128fsimple @ oqsprovider
  sphincssha2128ssimple @ oqsprovider
  p256_sphincssha2128ssimple @ oqsprovider
  rsa3072_sphincssha2128ssimple @ oqsprovider
  sphincssha2192fsimple @ oqsprovider
  p384_sphincssha2192fsimple @ oqsprovider
  sphincsshake128fsimple @ oqsprovider
  p256_sphincsshake128fsimple @ oqsprovider
  rsa3072_sphincsshake128fsimple @ oqsprovider
  mayo1 @ oqsprovider
  p256_mayo1 @ oqsprovider
  mayo2 @ oqsprovider
  p256_mayo2 @ oqsprovider
  mayo3 @ oqsprovider
  p384_mayo3 @ oqsprovider
  mayo5 @ oqsprovider
  p521_mayo5 @ oqsprovider
  CROSSrsdp128balanced @ oqsprovider
  1. The command should return a list of the available quantum-safe KEM algorithms:
{ 1.2.840.113549.1.1.1, 2.5.8.1.1, RSA, rsaEncryption } @ default
  { 1.2.840.10045.2.1, EC, id-ecPublicKey } @ default
  { 1.3.101.110, X25519 } @ default
  { 1.3.101.111, X448 } @ default
  frodo640aes @ oqsprovider
  p256_frodo640aes @ oqsprovider
  x25519_frodo640aes @ oqsprovider
  frodo640shake @ oqsprovider
  p256_frodo640shake @ oqsprovider
  x25519_frodo640shake @ oqsprovider
  frodo976aes @ oqsprovider
  p384_frodo976aes @ oqsprovider
  x448_frodo976aes @ oqsprovider
  frodo976shake @ oqsprovider
  p384_frodo976shake @ oqsprovider
  x448_frodo976shake @ oqsprovider
  frodo1344aes @ oqsprovider
  p521_frodo1344aes @ oqsprovider
  frodo1344shake @ oqsprovider
  p521_frodo1344shake @ oqsprovider
  kyber512 @ oqsprovider
  p256_kyber512 @ oqsprovider
  x25519_kyber512 @ oqsprovider
  kyber768 @ oqsprovider
  p384_kyber768 @ oqsprovider
  x448_kyber768 @ oqsprovider
  x25519_kyber768 @ oqsprovider
  p256_kyber768 @ oqsprovider
  kyber1024 @ oqsprovider
  p521_kyber1024 @ oqsprovider
  mlkem512 @ oqsprovider
  p256_mlkem512 @ oqsprovider
  x25519_mlkem512 @ oqsprovider
  mlkem768 @ oqsprovider
  p384_mlkem768 @ oqsprovider
  x448_mlkem768 @ oqsprovider
  X25519MLKEM768 @ oqsprovider
  SecP256r1MLKEM768 @ oqsprovider
  mlkem1024 @ oqsprovider
  p521_mlkem1024 @ oqsprovider
  p384_mlkem1024 @ oqsprovider
  bikel1 @ oqsprovider
  p256_bikel1 @ oqsprovider
  x25519_bikel1 @ oqsprovider
  bikel3 @ oqsprovider
  p384_bikel3 @ oqsprovider
  x448_bikel3 @ oqsprovider
  bikel5 @ oqsprovider
  p521_bikel5 @ oqsprovider
  hqc128 @ oqsprovider
  p256_hqc128 @ oqsprovider
  x25519_hqc128 @ oqsprovider
  hqc192 @ oqsprovider
  p384_hqc192 @ oqsprovider
  x448_hqc192 @ oqsprovider
  hqc256 @ oqsprovider
  p521_hqc256 @ oqsprovider

Child links: TRS-003 TCER: PQ cryptography container

Attribute Value
platform GNU/Linux (Dockerized C5-DEC deployment environment)
execution_type Manual
verification_method Test (T)
release stable
complexity 1
test_data see referenced files
version 1.0

4 TC: Test DocEngine TSS-004

Test the DocEngine compilation of the report template.

Preconditions and setup actions

Test dependencies

  • TSS-001 executed successfully

Test steps

  1. Open a VS Code terminal connecting to the C5-DEC CAD dev container and ensure the Poetry shell environment is activated, otherwise run poetry shell.
  2. Change directory to c5dec:
cd ~/c5dec
  1. Run
quarto render ./c5dec/assets/report/index.qmd --to pdf

Expected outcome

  1. Quarto compilation finished successfully, with all pre and post-rending scripts executed successfully and final PDF file created: /home/alab/c5dec/c5dec/assets/report/_output/C5-DEC-CAD-DocEngine.pdf.

Child links: TRS-004 TCER: Test DocEngine

Attribute Value
platform GNU/Linux (Dockerized C5-DEC deployment environment)
execution_type Manual
verification_method Test (T)
release stable
complexity 1
test_data see referenced files
version 1.0

5 TC: Test the creation of an empty C5-DEC-based project TSS-005

Verify that the c5dec new command creates a project structured in agreement with the C5-DEC model.

Preconditions and setup actions

  • Access to the C5-DEC deployment artifacts obtained from the Git repository
  • Docker Engine (or daemon or Docker Desktop) running with the right privileges for the testing user
  • A terminal running a shell (e.g., bash, zsh)

Test dependencies

  • TSS-001 or TSS-002 executed successfully

Test steps

  1. Go to the C5-DEC project folder. E.g., in the path where C5-DEC was cloned from GitHub: cd c5dec.
  2. Run ./c5dec.sh new.
  3. Run ls or equivalent and verify that a zip folder named myproject.zip has been created.
  4. Unzip the file and access its contents (e.g., via a shell command, in a system explorer or in VS Code).

Expected outcome

  1. The ZIP file myproject.zip exists at the current path.

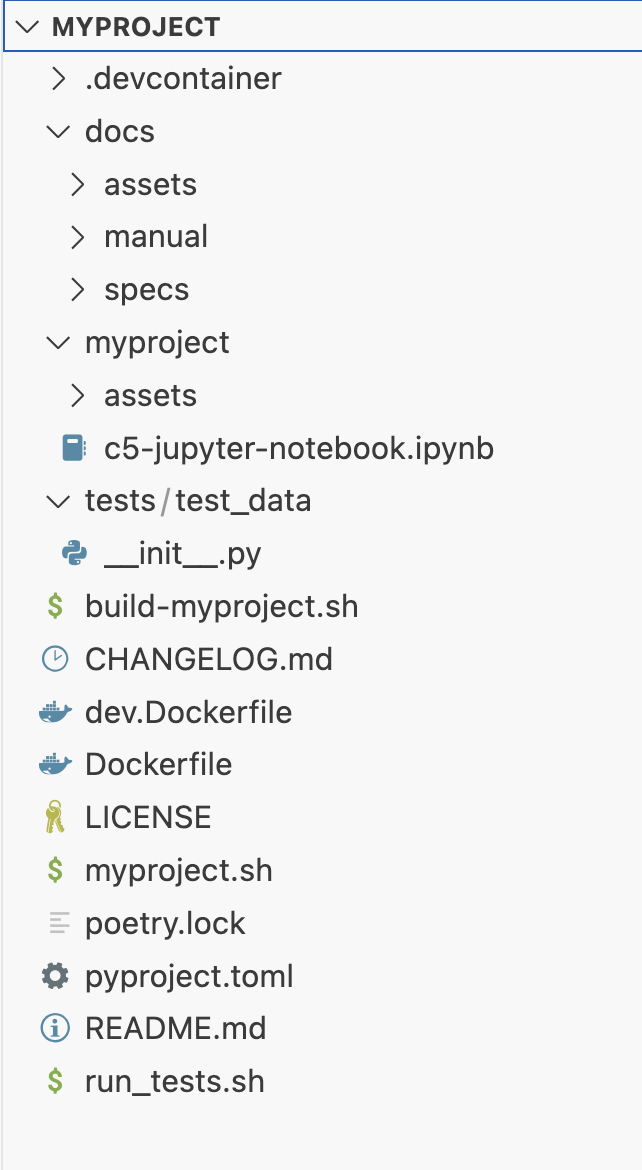

  2. The project folder has the structure shown below:

Custom new project

Child links: TRS-005 TCER: creation of empty C5-DEC-based project

Attribute Value
platform GNU/Linux, Windows
execution_type Manual
verification_method Test (T), Inspection (I)
release stable
complexity 1
test_data N/A
version 1.0

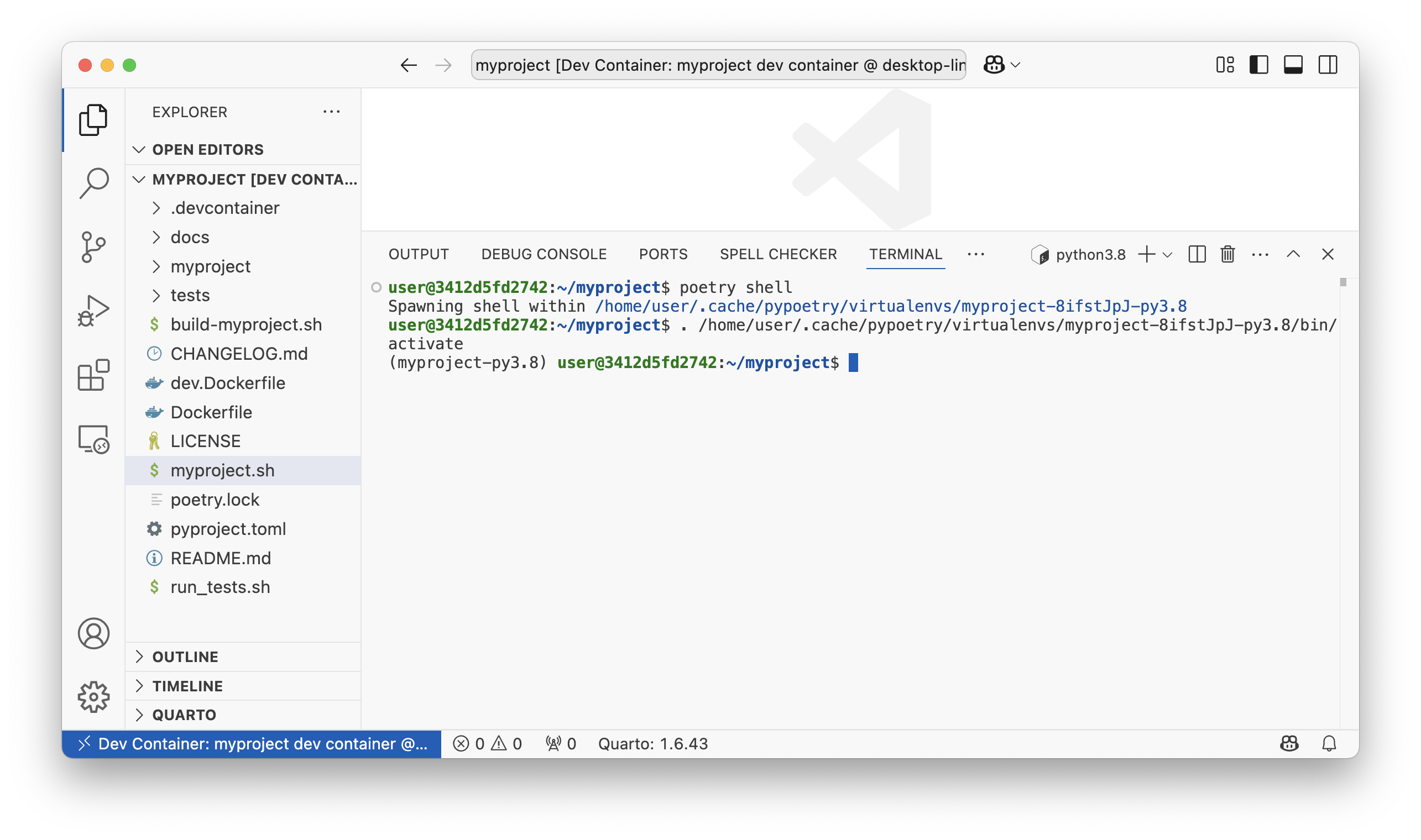

6 TC: Test build and run of new project via scripts TSS-006

Verify that the scripts of a new project created by c5dec successfully build an image of the new project and can run a default interactive session.

Preconditions

  • Access to the C5-DEC deployment artifacts obtained from the Git repository
  • Docker Engine (or daemon or Docker Desktop) running with the right privileges for the testing user
  • A terminal running a shell (e.g., bash, zsh)

Test dependencies

  • TSS-005 executed successfully

Setup actions

To keep a clean separation of the tested artifact, copy or move the unzipped project created during the execution of TSS-005 to a location of your choice outside the C5-DEC project folder. This location will be referred as the test_root folder.

Test steps

  1. Go to the test_root folder and then to myproject: cd test_root/myproject
  2. Build the project using the build script:
./build-myproject.sh
  1. Verify that the images myproject:v1.0 and myproject-dev:v1.0 have been created
docker images
  1. Run the help menu of the project
./myproject.sh help
  1. Create a container of the image built in 3 and open an interactive shell.
./myproject.sh session
  1. Verify that doorstop is installed
doorstop -V
  1. Exit the container session
exit

Expected outcome

  1. The command execution finishes showing a log without errors.
  2. The docker images myproject-dev and myproject-dev with tag v1.0 appear in the list of images.
  3. An informative text with the available commands is shown in the terminal.
  4. An interactive shell inside a docker container is opened.
  5. Doorstop v3.0b9 is shown as the output.
  6. The system shell appears back in the terminal.

Child links: TRS-006 TCER: build and run an empty created project

Attribute Value
platform GNU/Linux
execution_type Manual
verification_method Test (T)
release stable
complexity 2
test_data N/A
version 1.0

7 TC: Test new project in VS Code TSS-007

Validate that the empty C5-DEc-based project opens correctly in VS Code.

Preconditions

  • Access to the C5-DEC deployment artifacts obtained from the Git repository
  • Docker Engine running with the right privileges for the testing user
  • Microsoft Visual Studio Code installed (v1.98.2)
  • Microsoft VS Code Dev Containers installed, i.e., the VS Code extension (v0.401.0)

Test dependencies

  • TSS-005 executed successfully

Setup actions

To keep a clean separation of the tested artifact, copy or move the unzipped project created during the execution of TSS-005 to a location of your choice outside the C5-DEC project folder.

Test steps

  1. Open myproject in VS Code.
  2. Select the "Reopen in Container" option in the notification that pops up. Alternatively, launch the command palette (Cmd/Ctrl+Shift+P) and select "Dev Containers: Reopen in Container" from the list of available commands.
  3. Open a terminal in VS Code if it none is open and run
poetry shell
  1. To verify that dependencies are installed, check the version of quarto. You can try other dependencies of your choice (e.g doorstop, kryptor, etc.)
quarto -V

Expected outcome

  1. A myproject shell is created

New project shell

  1. 1.6.43 is shown as the output.

Child links: TRS-007 TCER: New project in VS Code

Attribute Value
platform GNU/Linux (Dockerized C5-DEC deployment environment)
execution_type Manual
verification_method Test (T)
release stable
complexity 2
test_data N/A
version 1.0
